A Comprehensive Guide to Hydraulic Filter Elements and Their Types

March 14, 2023

Hydraulic filter elements are an essential part of any hydraulic system. Their job is to ensure that the system is well-protected from dirt and other contaminants that can damage it. In this article, we’ll explore what hydraulic filter elements are, their various types, and how they work to keep your system safe and efficient. Learn more about these important components now!

Introduction to Hydraulic Filter Elements

As the name suggests, hydraulic filter elements are used in hydraulic systems to remove contaminants from the fluid. There are a variety of different types of filter elements available, each with its own advantages and disadvantages. The type of filter element you choose will depend on the specific needs of your hydraulic filter system. The most common type of hydraulic filter element is the pleated paper filter. Pleated paper filters are made from a variety of materials, including cellulose, glass fiber, and synthetic fibers. They are typically used in applications where high levels of contamination are expected. Pleated paper filters can be used in both oil-based and water-based hydraulic fluids. Another common type of hydraulic filter element is the spin-on filter. Spin-on filters consist of a cylindrical housing that contains a pleated paper or synthetic fiber element. They are designed for use in applications where space is limited and easy maintenance is required. Spin-on filters can be used in both oil-based and water-based hydraulic fluids. Cartridge-type filter elements are also available for use in hydraulic systems. Cartridge-type filters consist of a housing that contains one or more pleated paper or synthetic fiber elements. They offer high levels of contaminant removal and long service life. Cartridge-type filters can be used in both oil-based and water-based hydraulic fluids

Types of Filter Elements

Filter elements are the heart of every hydraulic filtration system. Without a properly functioning filter element, your system will be susceptible to a number of problems including:
  • Abrasive wear
  • Corrosion
  • Fluid contamination
  • Hydraulic fluid breakdown

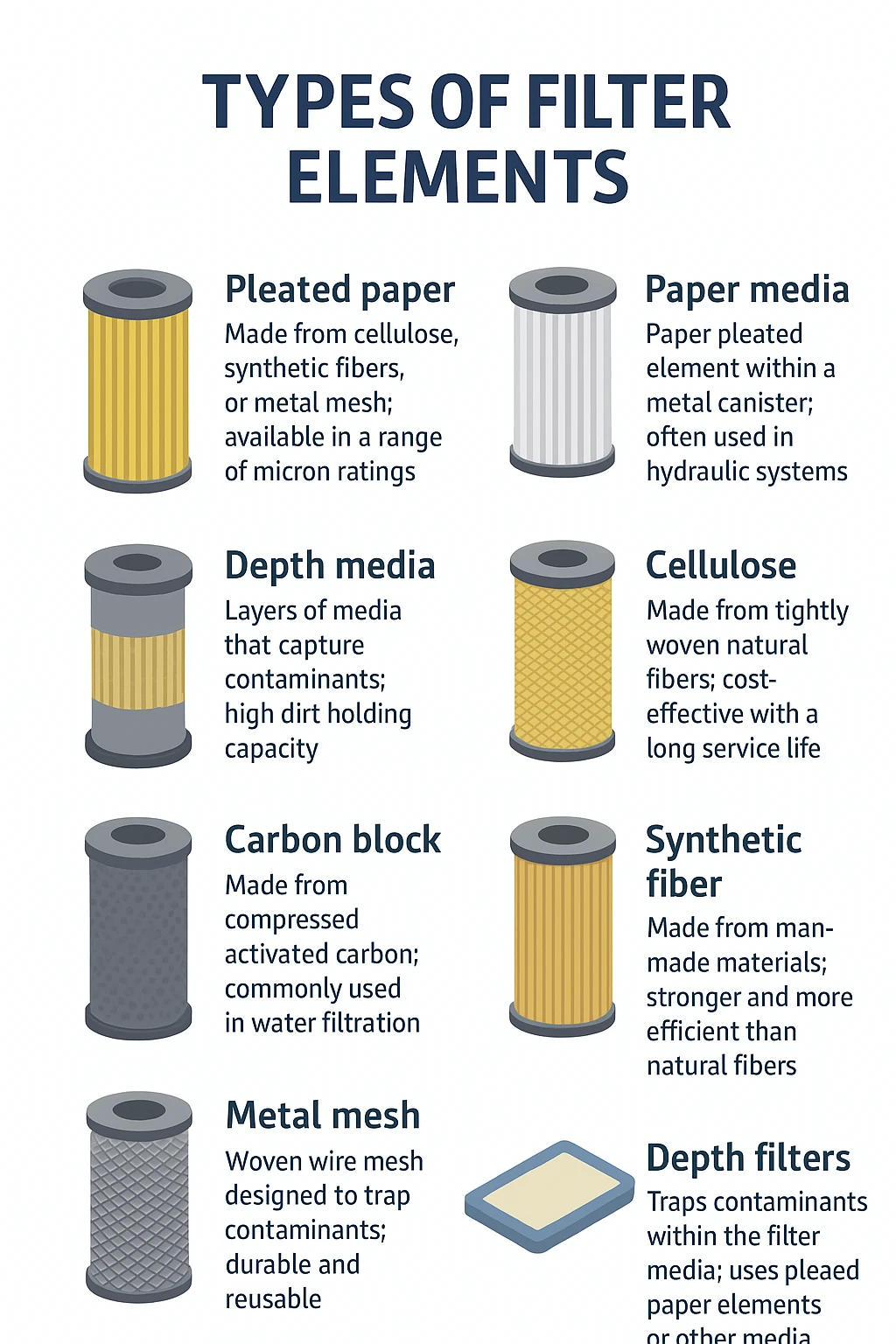

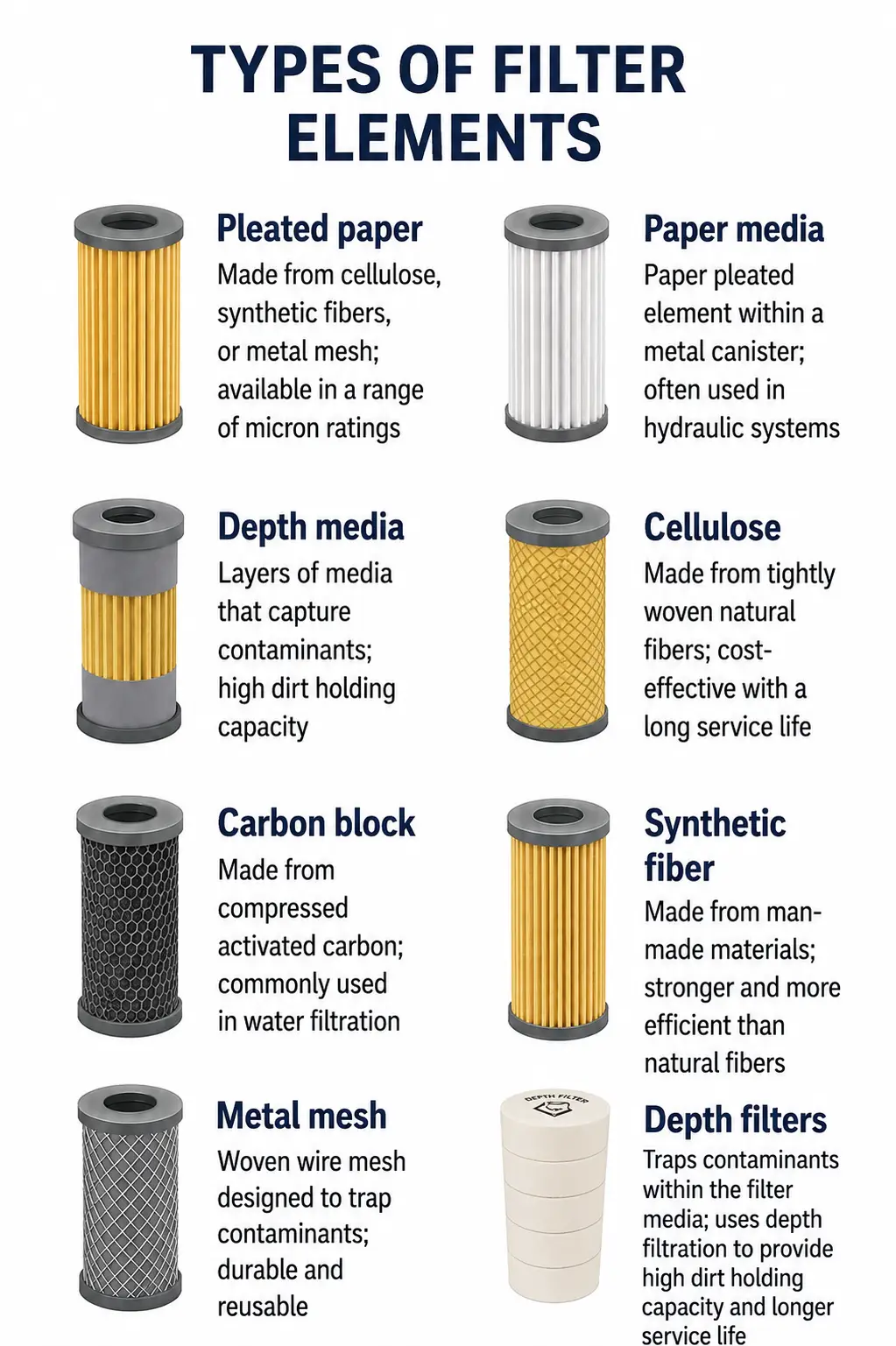

There are a variety of filter elements available on the market, each designed to address specific needs. The most common types of filter elements include: Pleated paper – Pleated paper filter elements are the most popular type of filter element. They are made from a variety of materials including cellulose, synthetic fibers, and metal mesh. Pleated paper filter elements can be used in a wide range of applications and are available in a variety of micron ratings. Depth media – Depth media filter elements are composed of layers of media that capture contaminants as they pass through. The media is typically made from cellulose or synthetic fibers. Depth media filter elements have a high dirt holding capacity and can be used in high-pressure applications. Carbon block – Carbon block filter elements are made from compressed activated carbon. They are often used in water filtration systems to remove impurities such as chlorine, taste, and odor. Carbon block filter elements can also be used in air filtration systems to remove volatile organic compounds (VOCs).

Paper Media Filters

Paper media filters are the most commonly used type of filter element in hydraulic systems. These filters are made from a paper pleated element that is placed inside a metal canister. The paper pleats provide a large surface area for dirt and other contaminants to be trapped. Paper media filters are available in a variety of micron ratings to suit the specific needs of your hydraulic system.

Cellulose Filters

Cellulose filters are the most common type of filter element used in hydraulic systems. They are made from natural cellulose fibers that are tightly woven together to form a porous media. Cellulose filters can be used to remove both solid and liquid contaminants from hydraulic fluids. Cellulose filters typically have a lower initial cost than other types of filter elements. They also have a relatively long service life, making them a cost-effective option for many applications. However, cellulose filters can be more susceptible to plugging than other types of filter elements. This is because they have a larger surface area that can capture contaminants. Cellulose filters should be replaced when they become plugged or when the pressure drop across the filter increases significantly. Depending on the application, replacement intervals may range from once per week to once every few years.

Synthetic Fiber Filters

As the name suggests, synthetic fiber filters are made from man-made materials like polyester or nylon. These materials offer a number of advantages over natural fiber, including increased strength, resistance to temperature and chemicals, and improved filtration efficiency. Synthetic fiber filters can be used in a wide range of applications, including automotive, marine, and industrial. They are available in a variety of shapes and sizes to suit your specific needs.

Metal Mesh Filters

Hydraulic filter elements are used in a variety of industries to remove contaminants from fluids. There are many different types of filter elements, each with its own unique benefits and drawbacks. Metal mesh filters are one type of filter element that can be used in hydraulic systems. Metal mesh filters are made of a woven wire mesh that is designed to trap contaminants. The mesh is usually made of stainless steel or other corrosion-resistant material. The size of the mesh can vary, depending on the application. Metal mesh filters can be used in a variety of industries, including oil and gas, automotive, aerospace, and manufacturing. Metal mesh filters have a number of advantages over other types of filter elements. They are durable and can withstand high pressures. They are also able to trap very small contaminants, making them ideal for use in high-pressure hydraulic systems. Metal mesh filters can be cleaned and reused, which makes them cost-effective in long-term applications. There are some disadvantages to using metal mesh filters as well. They can become clogged more easily than other types of filter elements, which can reduce their efficiency over time. They also tend to be more expensive than other types of filter elements. If you are considering using metal mesh filters in your hydraulic system, it is important to weigh the pros and cons carefully before making a decision. With proper care and maintenance, metal mesh filters can provide years of reliable service.

Depth Filters

As the name suggests, depth filters are designed to remove contaminants from fluids by trapping them within the filter media. The most common type of depth filter is a pleated paper filter element, which uses a series of progressively finer layers of paper to trap contaminants. Other types of depth filter media include natural fibers, synthetic fibers, and porous metal. Depth filters are typically used in applications where high contaminant loads are expected, such as in hydraulic systems that operate in dusty or dirty environments. They are also well suited for removing particulates from fluids that will be reused, such as in water recycling applications.

Activated Carbon Filters

Activated carbon filters are used to remove contaminants from liquids and gases. These filters are made of activated carbon, which is a porous form of carbon that has been treated to be extremely adsorbent. Activated carbon filters are used in a variety of applications, including water treatment, air purification, and medical uses.

Water Treatment

Activated carbon filters are commonly used in water treatment to remove impurities from water. These filters can remove a wide range of contaminants, including chlorine, chemicals, and bacteria. Activated carbon filters are often used in conjunction with other types of water filtration systems to provide the highest level of filtration possible.

Air Purification

Activated carbon filters are also used in air purifiers to remove contaminants from the air. Air purifiers that use activated carbon filters are effective at removing a wide range of airborne contaminants, including dust, pollen, smoke, and odors. Activated carbon air purifiers are often used in homes and offices to improve indoor air quality.

Medical Uses

Activated carbon filters are also used in medical settings for a variety of purposes. These filters can be used to remove toxins from the blood or to filter out bacteria and other contaminants from medical supplies and equipment. Activated carbon filters are also sometimes used in breathing machines to help patients who are suffering from respiratory problems.

Benefits & Advantages of Using Filter Elements

Filter elements are used in a variety of hydraulic applications to remove contaminants from oil. There are many benefits and advantages to using filter elements, including:
  • Improved performance of hydraulic components
  • Extended life of hydraulic components
  • Reduced downtime and maintenance costs
  • Enhanced system reliability

Common Applications of Filter Elements

Filter elements are used in a variety of applications to remove contaminants from hydraulic fluids. The most common type of filter element is the spin-on filter, which is used in most automotive and light truck applications. Other types of filter elements include cartridge filters, inline filters, and canister filters. Cartridge filters are often used in heavy duty applications such as construction equipment and agricultural machinery. Inline filters are used in applications where space is limited, such as in compact excavators. Canister filters are used in high-pressure applications such as hydraulic presses.

Conclusion

Hydraulic filter elements are an essential component of any hydraulic system, and understanding them is key to maintaining a well-functioning system. We hope this guide has helped you learn more about the different types of filter elements and their applications in various systems. With the right filter element for your project, you can rest assured that your equipment will be able to run efficiently for as long as possible. Contact us our experts to know more about Hydraulic filter elements.
